Product Description

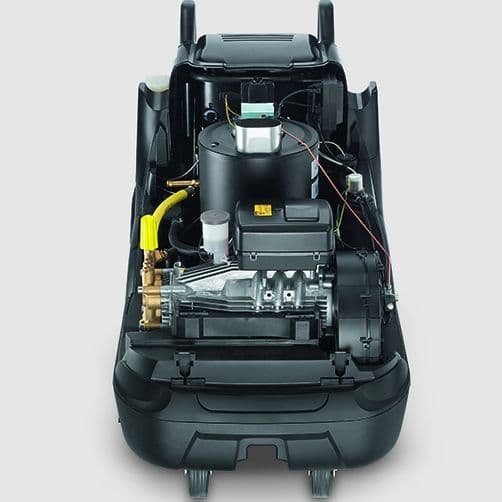

Karcher’s HDS middle class hot water high-pressure cleaners reach very high levels of performance, reliability and economy. With innovative features such as the eco!efficiency mode, offering fuel savings of up to 20% without compromising cleaning performance, 4-pole motors for high performance and long life, on-board diagnostics, and 3-year burner coil warranty, the HDS middle class range provides our customers with the toughness, cleaning power, and low running costs they demand. The HDS7/9-4 M features a 4-pole, air-cooled 110V electric motor with long-life bearings and a 3-piston axial pump with ceramic pistons. With water flow of up to 700 litres per hour, and up to 90 bar pressure, the HDS 7/9 is a great all-round machine with superb performance for daily and deep cleaning jobs where 110V power supply is required.

Technical data

Current type (Ph/V/Hz) 1 / 110 / 50
Flow rate (l/h) 350 - 700
Operating pressure (bar/MPa) 30 - 90 / 3 - 9
Max. temperature (°C) 80 - 155
Power rating (kW) 3.2
Consumption fuel oil (kg/h) 4.6
Power cable (m) 5
Fuel tank (l) 25
Weight (kg) 146
Dimensions (L x W x H) (mm) 1330 x 750 x 1060

Equipment

  • Trigger gun, EASY!Force Advanced
  • High-pressure hose, 10 m
  • Spray lance, 1050 mm
  • Power nozzle
  • Steam nozzle
  • Tanks for detergent, scale inhibitor and fuel can be filled from outside
  • Control panel with indicator lamps
  • Three piston axial pump, with ceramic piston
  • Pressure switch control
  • Electronic service control with LED display
  • Two detergent tanks
  • Dry running protection

Specifications

Origin
1.077-902.0
EAN
4054278140049
GTIN
4054278140049
ORIGIN
DE
Customs Tariff
84243001
Size
1300 x 800 x 1140
MPN
1.077-902.0
Brand
Karcher
Condition
New
Product Code
10779020
Weight
188kg

Customer Reviews

Karcher HDS 7/9-4 M 110v

Product Code 10779020

**2yr Onsite Warranty and full onsite machine training included**
