Product Description

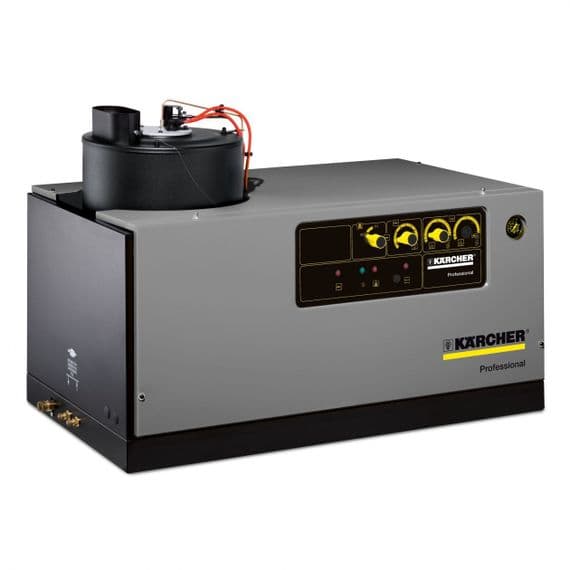

The Karcher HDS 12/14-4 ST stationary high-pressure cleaning system offers an extraordinary high level of safety with its outstanding pressure relief, flue gas temperature monitor, innovative dry run cut-out in the float tank (protecting the pump) and the soft dampening system that reduces vibrations therefore extending the life of the unit. Ideal for cleaning applications where cleaning and disinfecting have to be done regularly to high standards such as in the food industry or in sanitary areas. Used with Eco-Line boilers, these units comply with the latest BimSch emission regulations.

Specifications

Technical data

Current type (Ph/V/Hz) 3 / 400 / 50
Flow rate (l/h) 600 - 1200
Operating pressure (bar/MPa) 30 - 140 / 3 - 14
Max. temperature (°C) 155 - 80
Power rating (kW) 7.5
Consumption fuel oil (kg/h) 7.3
Fuse protection (A) min. 20
Weight (kg) 160
Dimensions (L x W x H) (mm) 1110 x 565 x 700
Number of users 1

Equipment

  • SDS system
  • System pressure relief
  • Flame monitor
  • Ready for Servo Control
  • Ready for remote control

Specifications

Origin
1.699-921.0
EAN
4054278169521
GTIN
4054278169521
ORIGIN
DE
Customs Tariff
84243001
Size
1210 x 680 x 1020
MPN
1.699-921.0
Brand
Karcher
Condition
New
Product Code
16999210
Weight
179kg
